ASTM A105 CLASS150 Carbon Steel Flanges Q235 DN80 PN16 PL Flange

Name: ASTM A105 CLASS150 Carbon Steel Flanges Q235 DN80 PN16 PL Flange
Brand: Carbon Steel PL flange
Price: 1 USD

Brand Name : Carbon Steel PL flange

Model Number : LJ-PF473

Certification : ISO9001

Place of Origin : China

MOQ : 100pcs

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : Annual output 50000 tons

Delivery Time : Depends on the quantity of goods

Packaging Details : Export standard packaging

Material : Carbon Steel

Connection : Welding

Size : 3/4'',1/8' ~ 6'

Application : Connect Pipes

Standard : DIN,BSP,ANSI

Pressure : PN2.5,PN10

Contact Now

ASTM A105 CLASS150 Q235 DN80 PN16 Carbon Steel PL flange

Description

Carbon Steel PL flange refers to the connector whose body material is carbon steel flange or end flange. Flange materials include forging A105, or Q235B, 10#, 20#, A3 steel, Q345B, 45 steel, etc.

Specification

Size:1/2"-60"
Pressure:150#-2500#

Diameter range: dn15-dn1000

Product material: A105 16Mn 20#

Product features: corrosion resistance

Technical data sheet

ASTM A105 CLASS150 Q235 DN80 PN16 Carbon Steel PL flange technical data sheet as below:

DN	Outer diameter A1		Connection size					Flange thickness	Flange inner diameter		Groove width
	Outer diameter A1		Flange outer diameter	K	L	n	Th		Flange inner diameter
	A	B	Flange outer diameter	K	L	n	Th		A	B
10	17.2	14	90	60	14	4	M12	14	18	15	4
15	21.3	18	95	65	14	4	M12	14	22.5	19	4
20	26.9	25	105	75	14	4	M12	16	27. 5	26	4
25	33.7	32	115	85	14	4	M12	16	34. 5	33	5
32	42.4	38	140	100	18	4	M16	18	43.5	39	5
40	48.3	45	150	110	18	4	M16	18	49.5	46	5
50	60.3	57	165	125	18	4	M16	19	61.5	59	5
65	76.1	76	185	145	18	8	M16	20	77.5	78	6
80	88.9	89	200	160	18	8	M16	20	90.5	91	6
100	114.3	108	220	180	18	8	M16	22	116	110	6
125	139.7	133	250	210	18	8	M16	22	143.5	135	6
150	168.3	159	285	240	22	8	M20	24	170.5	161	6
200	219.1	219	340	295	22	12	M20	26	221.5	222	8

Characteristic

Carbon Steel PL flange is produced according to the size and tolerance range required by national standards. Usually, in order to prevent rust, the flange surface will have electroplated layer (yellow zinc, white zinc, etc.), or be painted with antirust oil and sprayed with antirust paint.

Application

Carbon Steel PL flange is widely used in basic projects such as chemical industry, construction, water supply, drainage, petroleum, light and light industry, refrigeration, sanitation, plumbing, fire protection, electric power, aerospace, shipbuilding and so on.

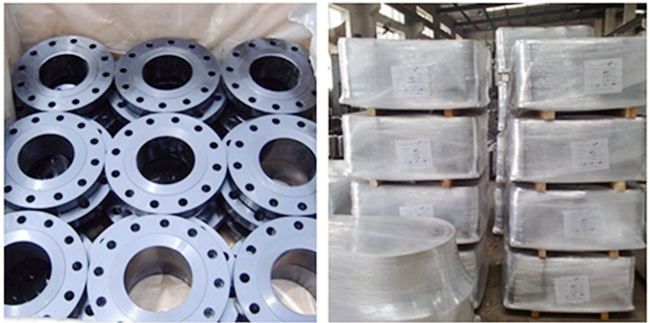

Package

Delivery
